Comparing five desktop diode workstations by analyzing merchant specifications, electrical power consumption versus optical output ratings, beam spot size dimensions, and workshop integration features.
This guide compares marketplace listings, seller specifications, and published manufacturer datasheets without physical lab testing. No hands-on testing was performed on these products. Open-frame blue diode lasers operating in the 445nm–455nm range present Class 4 radiation risks, requiring certified OD4+ eye protection and dedicated mechanical exhaust ventilation during operation.
The Optical Disparity: Why Electrical Watts Deceive Buyers
Marketplace listings for desktop diode lasers often display total electrical input wattage rather than true optical radiant power. A machine advertised as an 80W or 130W model typically reflects wall-plug power consumption across the control board, cooling fans, steppers, and diode drivers. In optical diode designs, individual 450nm emitters produce between 3.5W and 6W of true optical power. Higher optical output levels, such as 10W, 20W, or 40W, rely on combining multiple diode beams inside the laser head using spatial beam combiners and compression optics.
For prospective buyers, single-pass material cutting performance depends on true optical output wattage and focal spot density rather than total system draw. Higher optical power allows deeper single-pass cuts in wood, acrylic, and leather, while smaller focal spot dimensions yield finer raster engraving detail.
Measures total power drawn by electronics, motors, and cooling systems. Relevant for selecting power supplies, but separate from cut depth capacity.
The actual light energy emitted through focusing optics onto the material. Dictates material penetration depth and maximum vector cut speeds.
High-Output Production Class (20W to 40W Optical Output)
Desktop diode machines with 20W to 40W optical output target users prioritizing faster cutting speeds and thicker sheet substrates. Multiple combined diode emitters increase radiant flux density, though higher-power module optics typically exhibit slightly larger focal spots than low-wattage single-diode heads.
ATOMSTACK A40 Pro V2 (40W Optical Output Class)
The ATOMSTACK A40 Pro V2 is listed at $742.32 and features a multi-diode optical head rated for 40W optical output. It includes an automatic air-assist system that regulates airflow via firmware to reduce edge charring during heavy cutting passes. The unit supports LightBurn software for vector cutting and engraving workflow setup.
Best Suited For: Small business owners and production crafters cutting custom wood signs, leather goods, and dark acrylics who require high cutting speeds and integrated air control.
Considerations & Drawbacks: At $742.32, it represents a higher initial financial commitment, and the 40W optic stack produces a slightly wider kerf spot than lower-power single-diode engravers.
Generic 20W Diode Desktop Laser Cutter (300x300mm Bed)
Offered at $812.94, this 20W optical output desktop tool provides a 300x300mm working frame for DIY laser engraving and material cutting. It targets home workshops cutting wood, leather, and rubber sheet goods, balancing cutting power with a moderate frame size.
Best Suited For: Home DIYers seeking a compact 20W desktop cutter for medium-thickness wood and rubber processing without allocating space for a larger 400x400mm gantry.
Considerations & Drawbacks: The $812.94 price is relatively high compared to its standard 300x300mm work area, and the open-frame design lacks integrated enclosure features.
Mid-Tier & Fine Precision Desktop Units (3.5W to 10W Optical Output)
Lower-wattage optical modules (3.5W to 10W) utilize fewer combined diodes, allowing tighter focal spot compression down to 0.04mm. These models prioritize high-resolution raster engraving and detailed vector marking on thinner materials over rapid deep cutting.
Carverall K15PRO (10W Optical Diode Class)
Priced at $166.81, the Carverall K15PRO provides 10W diode optical output across a 200x300mm work area. It includes app control and software options for engraving wood, acrylic, leather, coated metal cards, keychains, and glass surfaces.
Best Suited For: Budget-conscious beginners and small craft businesses creating personalized gifts, logos, and surface-engraved promotional cards.
Considerations & Drawbacks: The 200x300mm work zone restricts larger signage projects, and single-pass cuts are limited to thinner substrates compared to 20W or 40W units.
Swift Mini 3.5W Pre-Assembled Engraver
The Swift Mini ($284.99) uses an air-cooled 3.5W optical diode head engineered for fine detail work. Its headline specification is a 0.04mm compressed focal spot size, shipped in a pre-assembled desktop layout for quick initial setup.
Best Suited For: Craft hobbyists focused on high-detail micro-engraving, fine line vector art, and surface marking on wood, leather, and thin acrylic without assembly complexity.
Considerations & Drawbacks: A 3.5W optical rating limits functional vector cutting depth, making it unsuitable for thick wood or dense sheet materials.
Specialized Workflows: Cylindrical & Enclosed Form Factors
Engraving round objects or operating in shared indoor spaces requires specialized hardware configurations. Enclosed housings help contain smoke and stray light reflections, while rotary attachments allow 360-degree rotation for cylindrical workpieces.

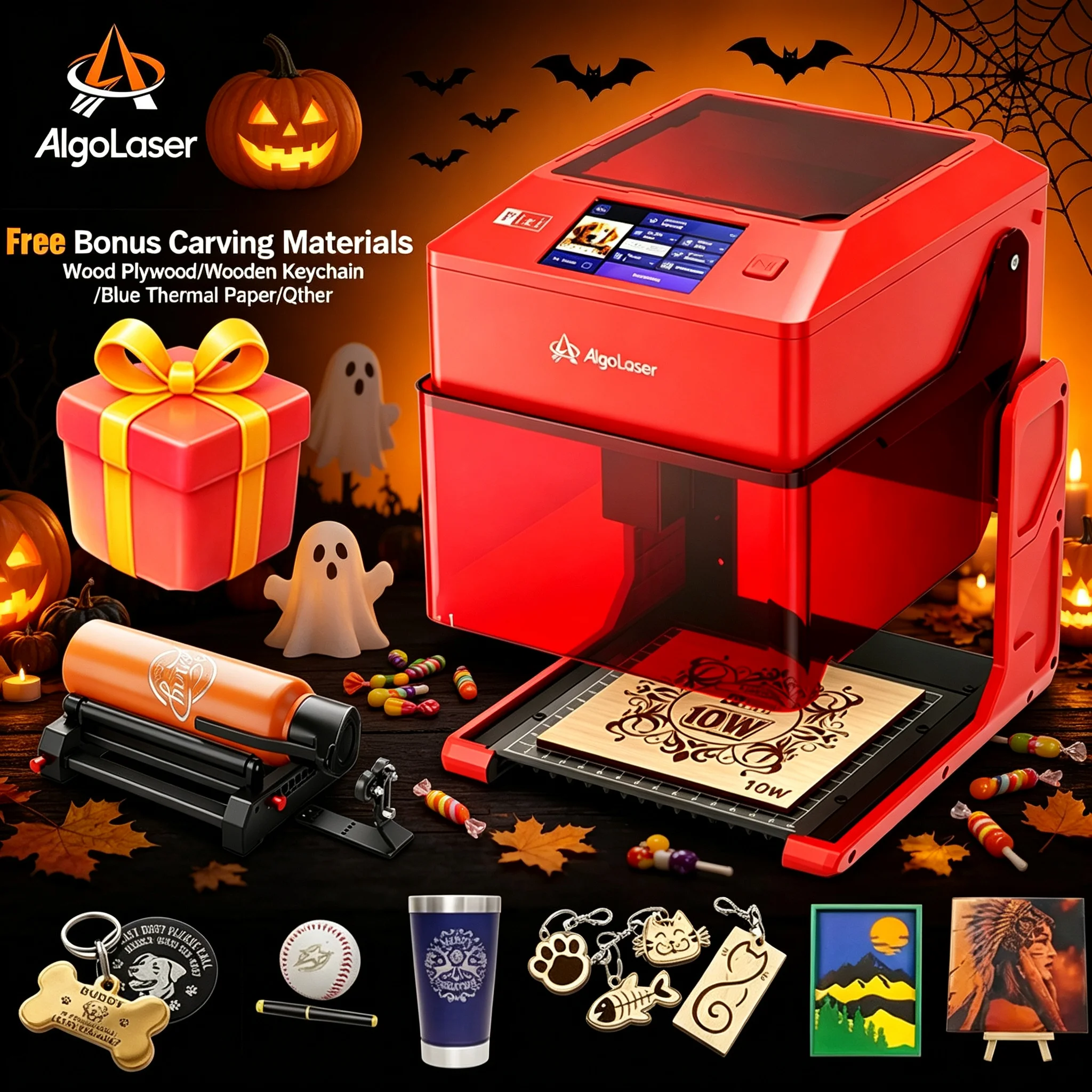

AlgoLaser PIXI (Integrated Enclosure & RR3 Rotary Bundle)
Available at a reference price of $232.69, the AlgoLaser PIXI combines an enclosed desktop housing with the RR3 Electric Rotary Roller Kit. Listing options cover 3W, 5W, and 10W optical diode power configurations, facilitating 360° cylindrical engraving on drinkware, glass cups, and tumblers.
Best Suited For: Drinkware customizers, gift shops, and desktop operators prioritizing an enclosed work region for tumbler and glass cup engraving.
Considerations & Drawbacks: The enclosed frame design limits flat sheet work volume compared to open gantry cutting tables.
Specification Audit Matrix: Audited Models Compared
The comparison table below details listed optical power ratings, focal spot dimensions, work area limits, safety features, and reference pricing across all five models.
| Machine Model | Optical Output | Focal Spot Size | Work Area | Air Assist / Safety | Ref Price (USD) |
|---|---|---|---|---|---|
| ATOMSTACK A40 Pro V2 | 40W Optical | Multi-Diode Array | Standard Desktop Gantry | Auto Air Assist Included | $742.32 |
| Generic 20W Desktop | 20W Optical | Standard Diode Spot | 300 × 300mm | Open Frame Design | $812.94 |
| AlgoLaser PIXI Bundle | 3W / 5W / 10W Options | Precision Engraving Spot | Enclosed Rotary Space | Enclosure + RR3 Rotary Kit | $232.69 |
| Swift Mini 3.5W | 3.5W Optical | 0.04mm Fine Spot | Compact Desktop | Air-Cooled Head | $284.99 |
| Carverall K15PRO | 10W Optical | Standard Focal Spot | 200 × 300mm | App Control / Open Frame | $166.81 |
Essential Buying Criteria & Workshop Integration Audit
1. Eye Protection & Optical Safety
Open-frame Class 4 lasers require eye protection rated OD4+ or higher across 445nm–455nm wavelengths. Built-in shield shrouds provide supplementary protection but do not replace dedicated safety eyewear.
2. Firmware Standard & Software Support
Controllers running standard 32-bit GRBL firmware provide cross-compatibility with software like LightBurn and LaserGRBL, enabling precise kerf offset adjustments and speed control.
3. Air Assist & Fume Extraction
Continuous air assist blows combustion vapors out of the cutting kerf, protecting optical lenses from smoke accumulation while minimizing edge scorching during single-pass vector cutting.
Final Decision Synthesis
- For Production Cutting & Thick Materials: Consider the ATOMSTACK A40 Pro V2 ($742.32) for its 40W optical output and automated air-assist system.
- For Cylindrical Tumblers & Enclosed Workspaces: Consider the AlgoLaser PIXI ($232.69) for its enclosed chassis and bundled RR3 rotary roller kit.
- For High-Precision Detail Engraving: Consider the Swift Mini 3.5W ($284.99) for its 0.04mm fine focal spot and pre-assembled design.
- For Compact Home DIY Work: Consider the Generic 20W Diode Cutter ($812.94) for a balanced 20W cutting module with a 300x300mm frame footprint.
- For Entry-Level Budget Crafting: Consider the Carverall K15PRO 10W ($166.81) for an economical entry into general 10W vector marking and light cutting.
